10 Way Waterproof Prewired Standard Blade Fuse Box R3-100-11-3110
10 Way Waterproof Prewired Standard Blade Fuse Box R3-100-11-3110
10 Way Waterproof Prewired Standard Blade Fuse Box R3-100-11-3110
10 Way Waterproof Prewired Standard Blade Fuse Box R3-100-11-3110

10 Way Waterproof Prewired Standard Blade Fuse Box R3-100-11-3110

£49.04 Save £0.00
/
Shipping calculated at checkout.
Only 0 items in stock!

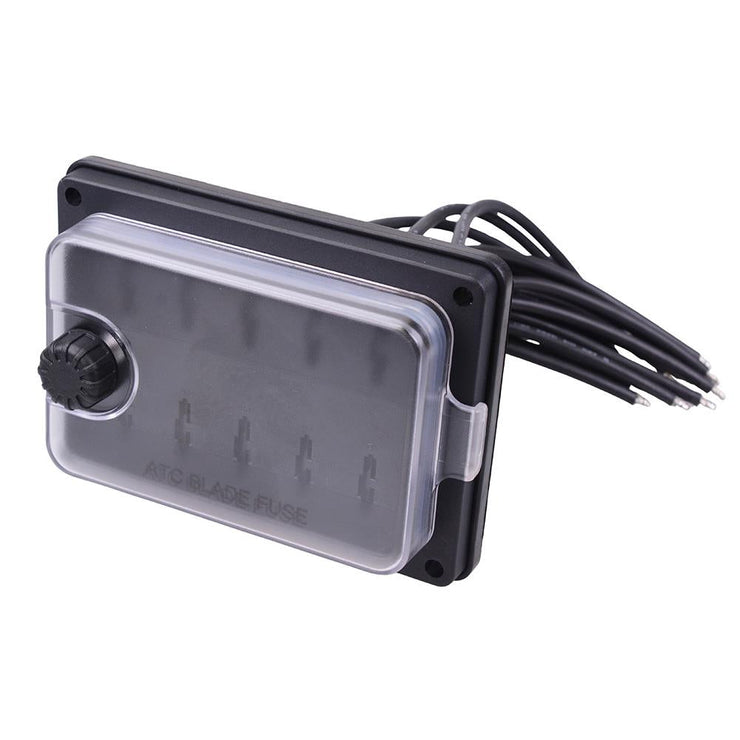

The R3-100-11-3110 is a 10 way standard blade fuse holder, featuring IP56 protection rating and 150mm tail leads. The fuse box comes complete with a clear lid and is designed for mounting to a panel. The box is designed for a wide range of automotive and marine applications due to its 32VDC rating.

  • 10 way ATO/ATC blade fuses

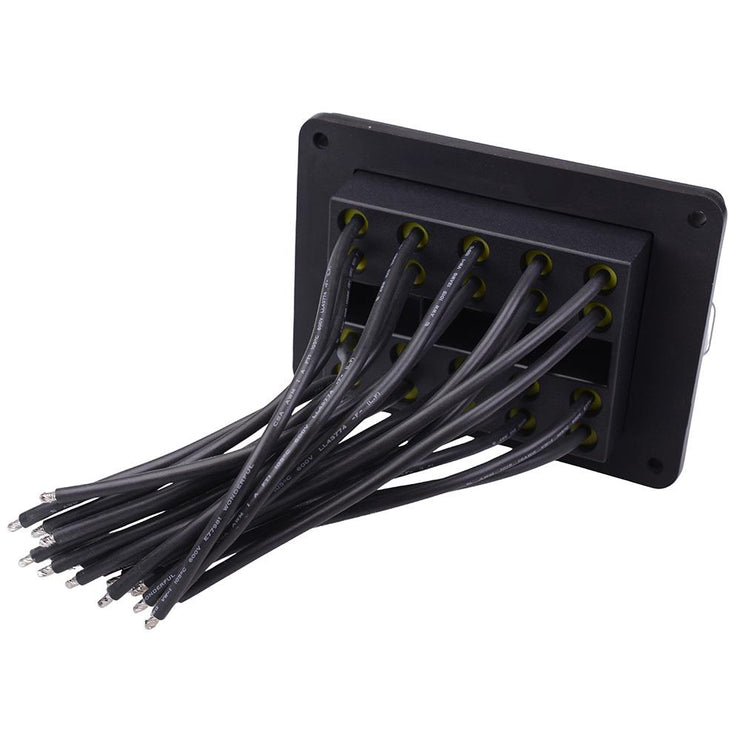

  • 150mm 12AWG tail leads
  • Voltage rating: 32VDC
  • Current rating: 20A max per circuit
  • Panel cut-out: 89 x 64mm
  • Mounting holes pitch: 109.7 x 75.5mm
  • 6mm diameter mounting holes
  • Protection rating: IP56
