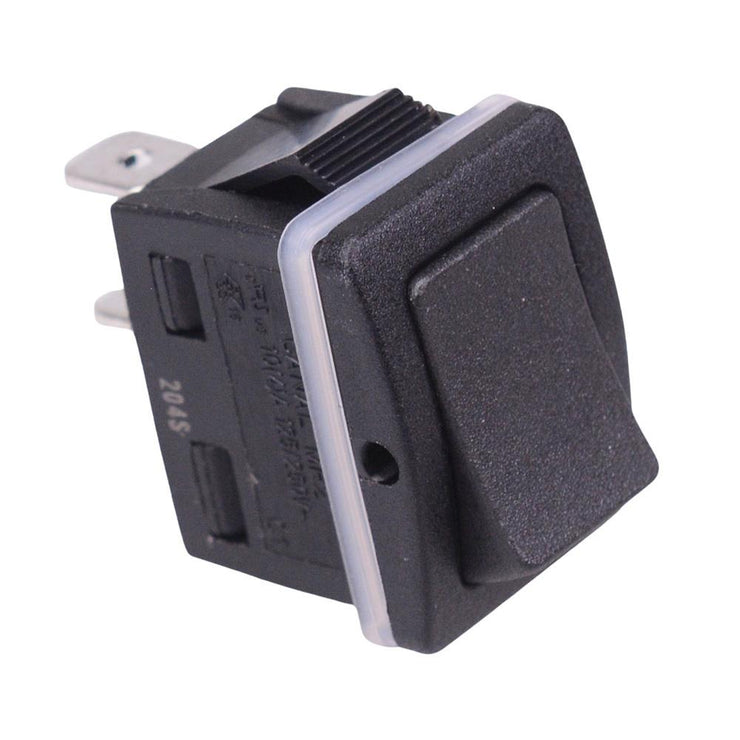

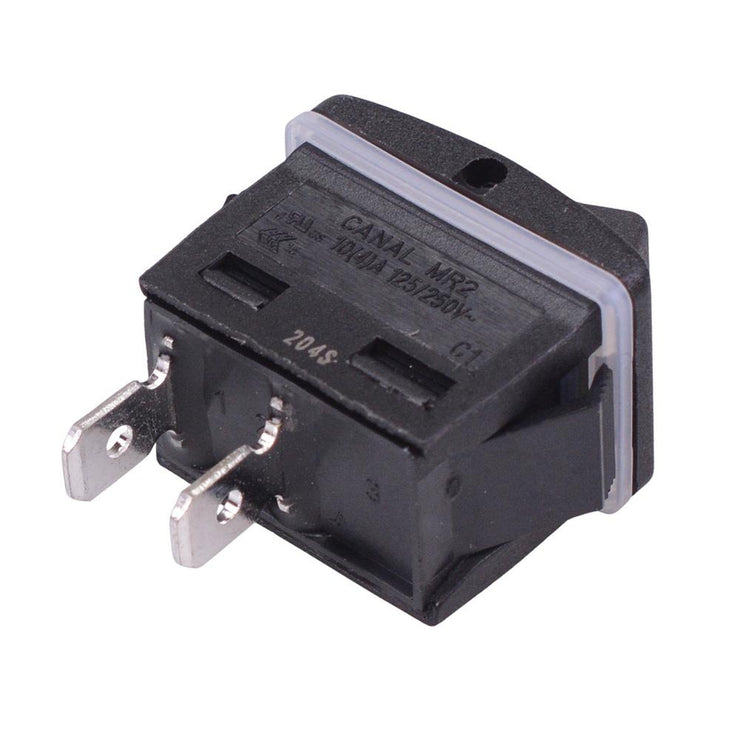

Waterproof rectangle rocker switch featuring SPST contacts and On-Off function. The switch requires a 19.2 x 12.9mm panel cut-out and features IP68 protection rating above the panel. The switch is rated up to 16A making it suitable for a wide range of AC applications.
Function: On-Off
Contacts: SPST
Panel cut-out: 19.2 x 12.9mm
Panel thickness: 0.75-3mm
Rating: 10(4)A 250VAC
Protection rating: IP68 (above the panel)
4.8mm quick connect terminals
Dimensions: 21.0 x 15.0 x 27.2mm (length x width x height)
